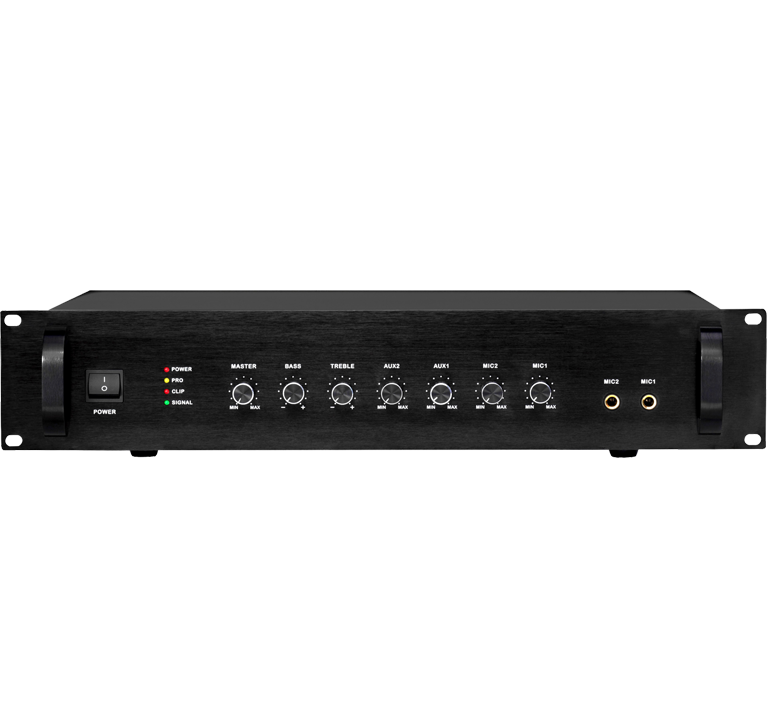

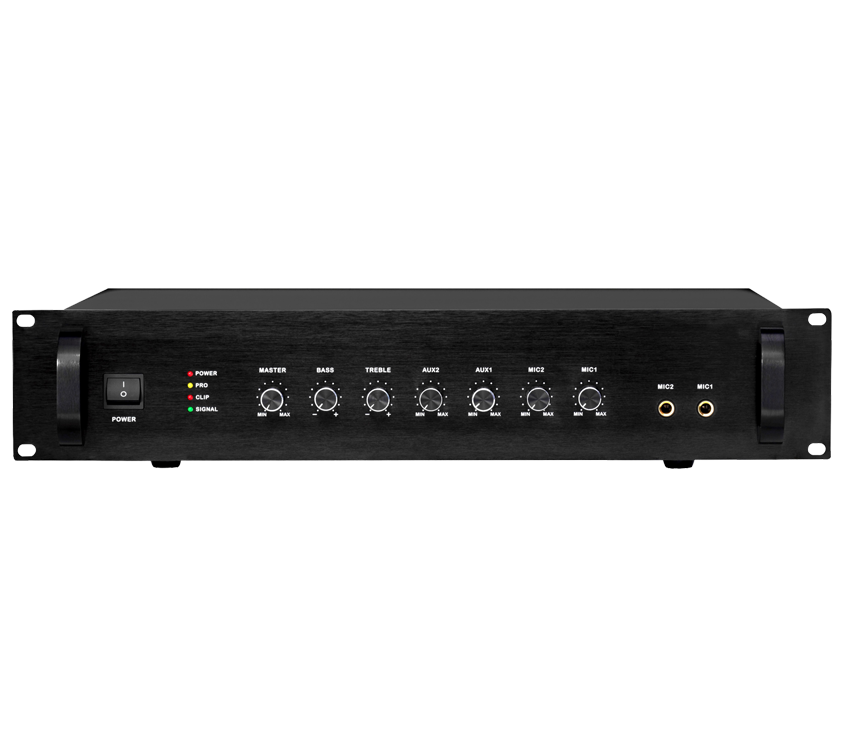

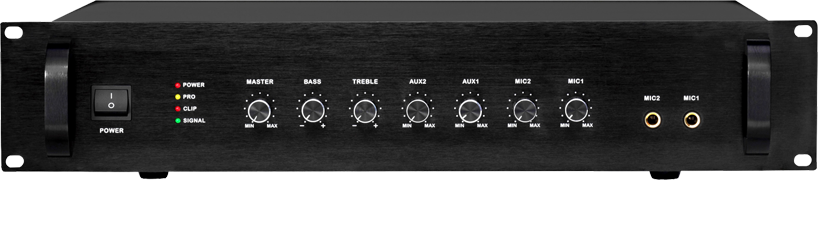

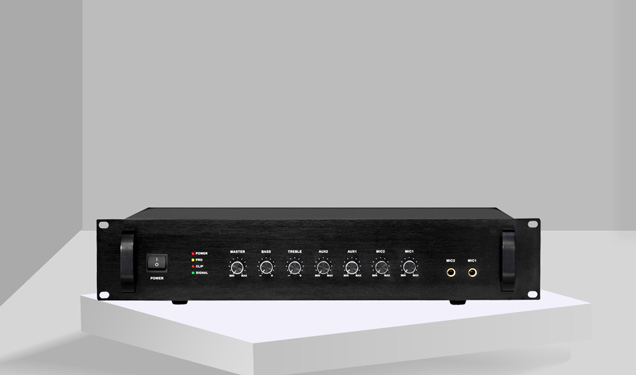

YE-B600 SIP Network Amplifier

AC220V power supply, standard chassis design, 2U aluminum alloy panel made of network amplifier; it sets a variety of functions in one, the output has a short-circuit, overcurrent, overload protection and LED warning, built-in intelligent temperature detection drive air-cooled, low-noise fan; can be adapted to a variety of use of the environment, convenient and rapid deployment of equipment.

Volume Independent Adjustment

Network volume, treble and bass, the volume of each input channel independent adjustment; 2-way RCA Lotus hybrid output, 2-way microphone input, microphone 1 has a strong cut-in priority, and has a silent adjustment function.

Automatic Detection Of Protection

Short-circuit, overheating, overload automatic detection and protection function; built-in self-excitation, overheating, switching machine anti-shock protection and LED warning.

YE-B600 | Specification

Technical Parameters

  • •Rated output: 80W/130W/180W/260W/360W/500W/660W different powers
  • •Output: Constant resistance 4-16Ω, Constant voltage 70V, 100V
  • •Input Sensitivity: MIC1/2/600Ω, 5.0mV(-54dB), unbalanced; AUX1, 2/10KΩ, 250mV(-10dB), unbalanced
  • •Tone Adjustment: Bass ±10dB at 100Hz Treble :±10dB at 10KHz
  • •Frequency Response:50Hz〜20KHz

Product Description

  • •Supports SIP2.0, TCP/IP, UDP, DHCP
  • •Speech activation detection/mute suppression
  • •Saturation distortion and LED warning
  • •Compatible with the standard SIP (RFC3261) protocol, can access the mainstream IP PBX/IMS platforms
  • •Signal level indication LED
