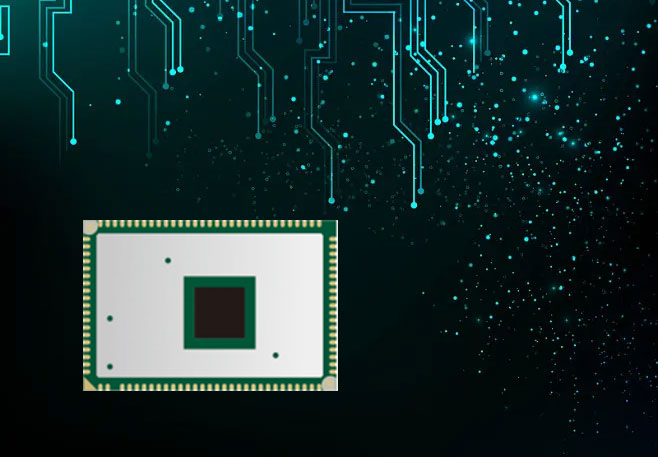

YE-SCB03 Broadcast Core Board

A specialized industry broadcast user needs and research and development of SIP broadcast core module, small and exquisite, stamp hole encapsulation module design; it sets a variety of functional interfaces in one: audio interface, camera interface, ADC key interface, USB interface, reset interface, media streaming using standard IP/RTP/RTSP protocols, compatible with SIP based on the mainstream IPPBX/softswitch/IMS platform, suitable for all kinds of integration programs DIY design. IMS platform, suitable for all kinds of integration program DIY design.

Embedded SIP Broadcast Intercom Software

VoIP core module designed for industry broadcast intercom applications, through the secondary development of daughter boards connected to the corresponding functional lines to realize the audio broadcast, one-key call intercom and other practical features

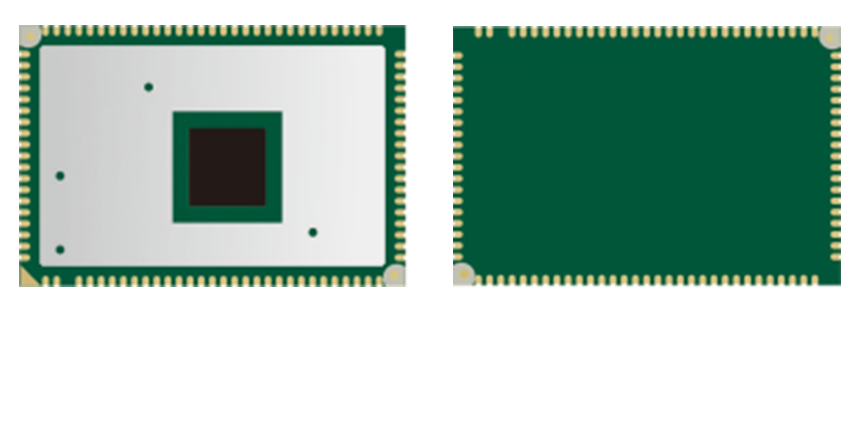

YE-SCB03 | Equipment List

Technical Parameters

  • •OS:Linux
  • •VoIP SoC: Single-core A7 core processor
  • •Memory: Built-in 64MB DDR2; Built-in 128MB Flash
  • •I/O interfaces: 1 SD2.0, 1 USB2.0 Host, 2 LED interfaces, etc.
  • •Functional interfaces: 1 audio output interface, 2 MIC interface, etc

Basic Functions

  • •2 SIP lines, speed dialing
  • •Linkage with IPC camera to realize video intercom
  • •Support mono active speakers, support audio line in
  • •Supports SD2.0 and USB2.0 interfaces
  • •Default automatic call answering (auto-attendant)
  • •Dynamic multicast function, SIP call to multicast
  • •Voice announcement of IP address, MP3 broadcasting, push-button or remote volume adjustment
