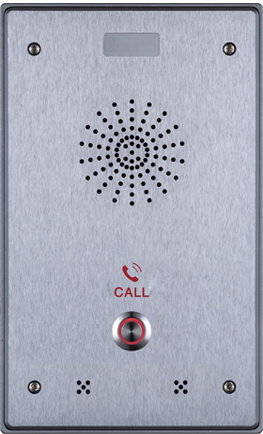

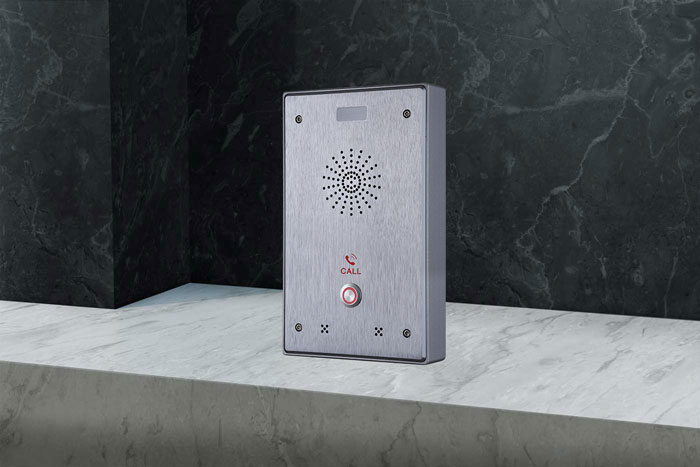

YE-Ti12 Outdoor Voice Intercom

The product is made of high-strength aluminum alloy, with iron chassis; the shell adopts waterproof and dustproof design, the standard reaches IP65; and the use of anti-disassembly hexagonal screws to fix the face shell, it is a user's trustworthy intercom products.

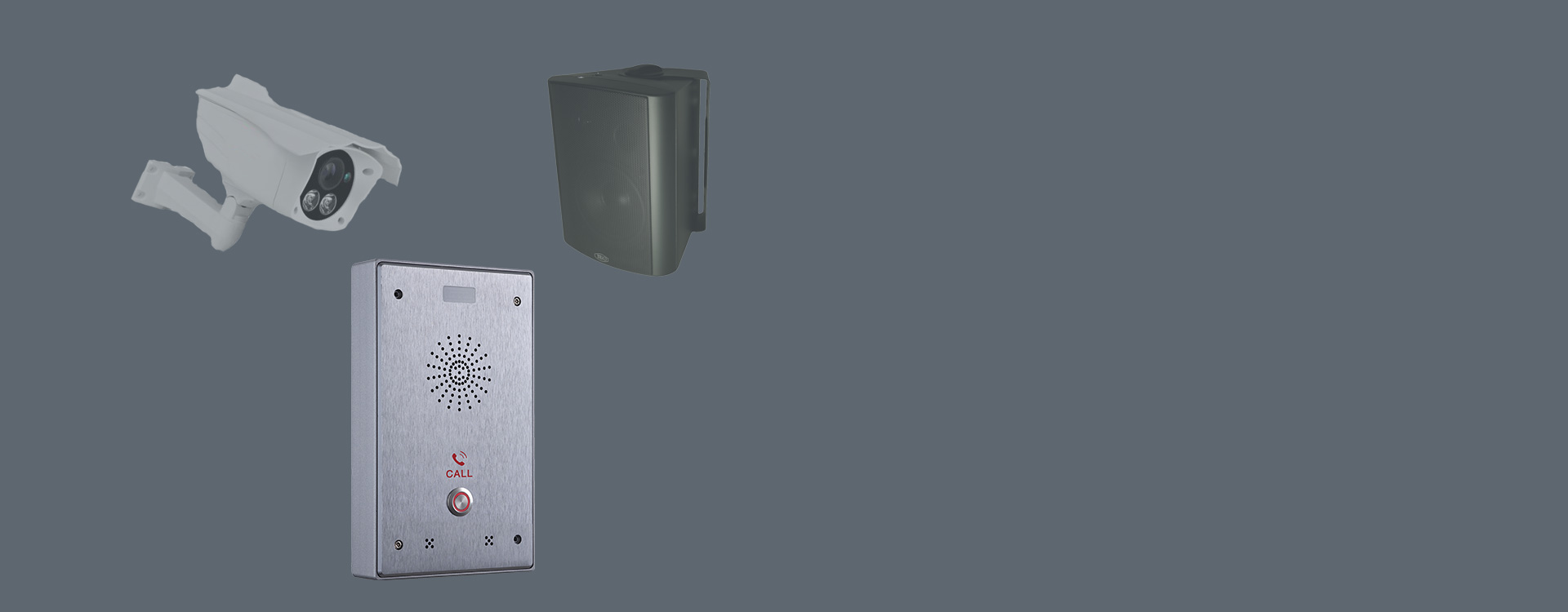

Record Output&External Active Speaker

With recording output port, provide to the hard disk recorder recording; with external active speaker output interface, realize HD sound quality (G.722) background music amplification playback

Hort-circuit Input/Iutput Interface

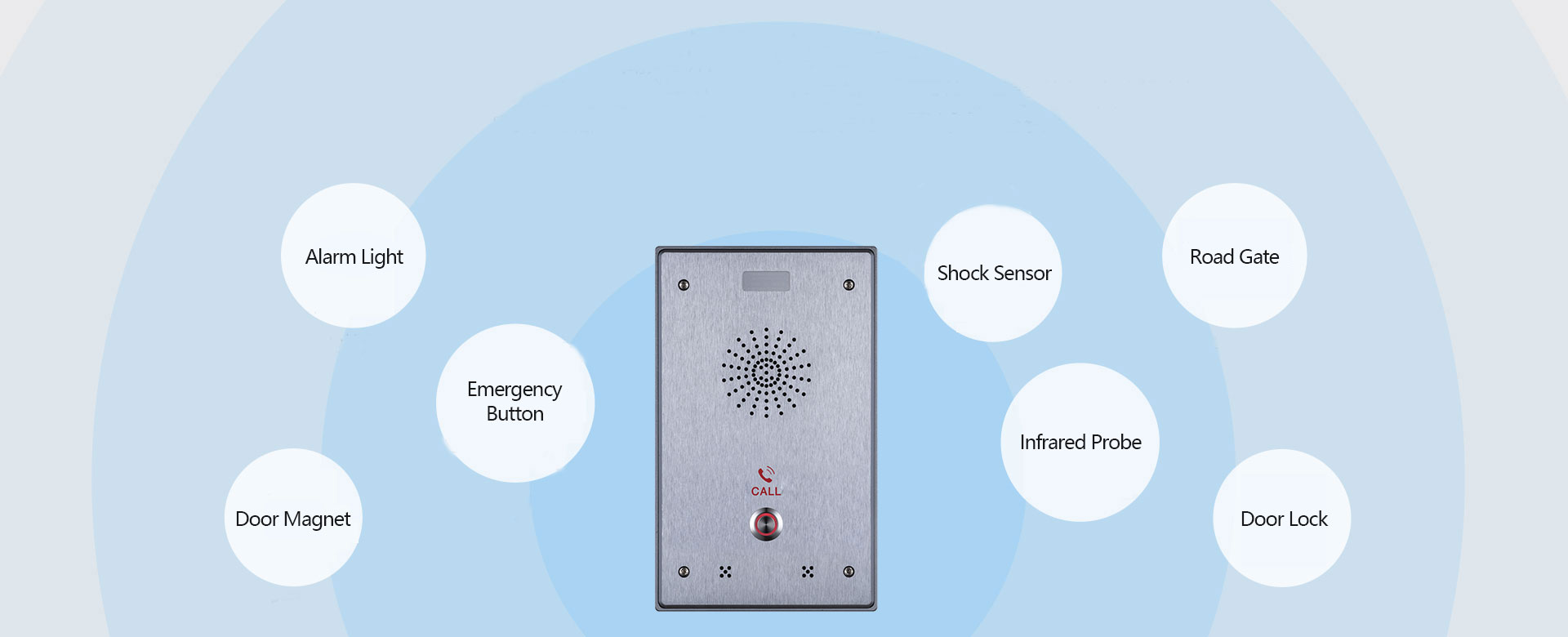

With 2 short-circuit inputs, 2 short-circuit outputs, connect the equipment according to the demand, input and output linkage control

Multiple Buttons to Choose

Provide different types of voice intercom products with two and three buttons

YE-Ti12 | Specification

Basic Performance

  • •2 SIP lines
  • •Full duplex hands-free calling (HF)
  • •Intelligent DSS keys (speed dial keys, intercom keys, etc.)
  • •Multicast function
  • •Functionality 3 in 1: Intercom, broadcasting and intelligent security functions
  • •Industry approvals:IP65,IK10,CE/FCC

Equipment Characteristics

  • •Local three-way conference calls
  • •Auto-answer (configurable for individual lines)
  • •Main Chip:Broadcom
  • •Protection class:IP65&IK10
  • •Omni-directional sound pickup: up to 5 meters/li>
  • •Dynamic Adaptive Jitter Cache up to 300ms
  • •RJ45 network interface x2: network x1, PC x1 (network bridge mode)
