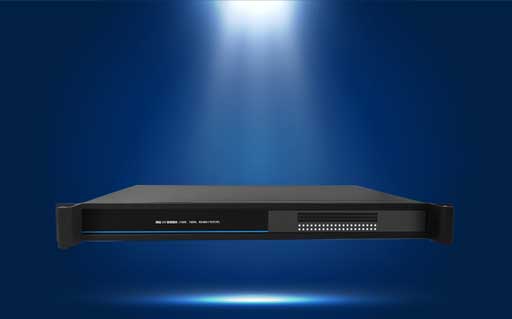

YE-G8000 Alarm Gateway

16-Way

Digital Input

1 Way

RS485 To Ethernet

16-Way

Digital Output

Stable And Reliable

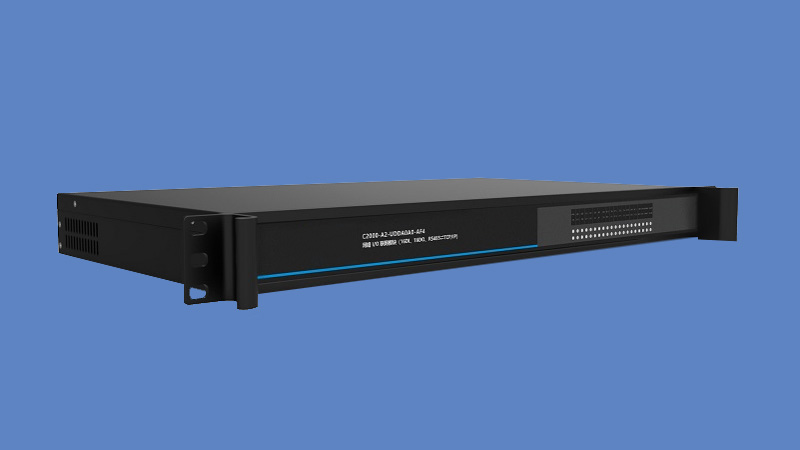

I/O and system completely isolated; Modbus TCP communication protocol; 1U rack-mounted design, a wealth of indicators, a comprehensive view of the status, timely troubleshooting

Well-equipped

Good over-current, over-voltage, anti-reverse connection, anti-wrong connection protection; the circuit adopts a special protection process, dust-proof, moisture-proof, corrosion-resistant, the extreme environment can also be stable operation

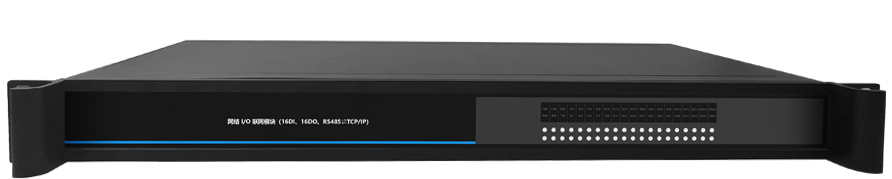

YE-G8000 | Equipment List

Functional Features

  • •PWR: Power indicator, device power on that is on, power off that is off
  • •RUN: equipment running indicator, normal operation every 1s interval blinking
  • •SPD: Network bandwidth indicator, always on when accessing 100M network
  • •Ethernet port: 10/100M Ethernet
  • •Power output port: DC 12V output port

Technical Parameters

  • •Communication protocol: Modbus TCP
  • •DI interface form: Phoenix terminal, dry contact acquisition
  • •DO contact capacity: DC 30V/1.35A
  • •RS485 interface lightning protection level: 2KV/1KA
  • •Network port interface form: 1 RJ45 network port
  • •Network port transmission distance: 100 meters
